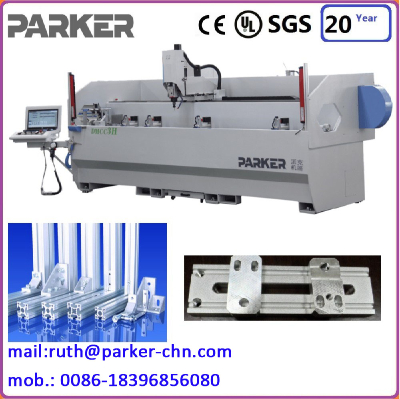

Aluminum 3 Axis CNC machining center window and door machine
Model: DMCC3H
Equipment features:
1. The machine is suitable for processing varieties of holes and slots for diversified aluminum doors and windows.
2. It adopts high-precision linear guide pair, ball screw, pinion and rack and imported servo motor to ensure the machine runs steadily with high precision.
3. It adopts Italian HSD high-speed motorized spindle to ensure the machine runs steadily with lower noise and better cutting ability.
4.It adopts vegetable oil microcrystalline cooling system to improve the tool life without poison and pollution.
5.The rotary workbench can change the position among -90°、0° and 90° arbitrarily, one time clamping can finish milling for three sides.
6.It adopts PA control system from Italy, intelligent CNC control system and straightforward human-computer interface make the operation much more convenient and efficient.
7.Application:Aluminum Architecture Material/PVC Window Door Profiles/Wooden Profiles /Curtain Wall and Facade Lock Hardware etc.
=============================
JINAN PARKER MACHINERY Co.,LTD
Contact: Ruth
Mobile/Whatsapp: 0086-18396856080
Skype: ruthzhou93
Email: ruth(at)parker-chn.com
- Size: 20
- Place of Origin: CHINA
- Brand Name: Parker Machinery
- Model Number: DMCC3H
- Weight: 5000.000 kg
- :
☆ X axis Stroke：3200mm
☆Y axis Stroke：300mm
☆Z axis Stroke：200mm
☆X axis Speed：0～140m/min
☆Y axis Speed：0～75m/min
☆Z axis Speed：0～75m/min
☆ Main spindle speed and Power：18000rpm/3kw
☆ Work table position：-90°、0°、 90°(Three degree)
☆ Cutter size: ER25-Ф8(Without Cutter or Within Storage and Max. Eight Cutters)
☆ Air Pressure：0.5～0.8MPa
☆ Voltage：380V/50Hz
☆ Power：6kw
☆ Cutter cooling：Auto spraying and cooling
☆ Processing dimension:（W×H×L）：160×160×3200mm
☆ Processing character：Can process three sides of profile per time loading profile
☆Dimension:（L×W×H）：4525×1630×1900mm
